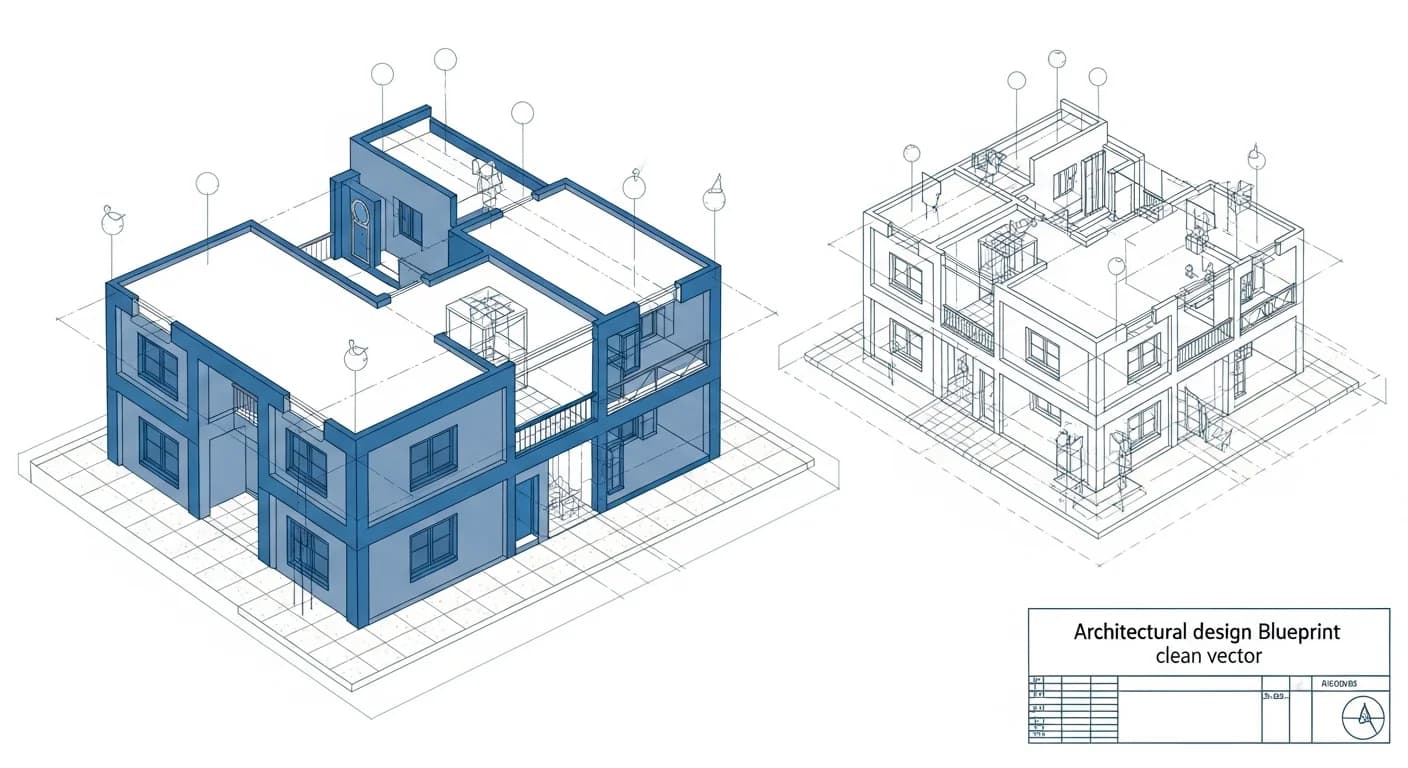

How to Vectorize Architectural Blueprints: CAD-Ready SVGs
Transform scanned architectural blueprints and floor plans into precise vector graphics. Perfect for architects, contractors, and real estate professionals needing clean CAD-compatible files.
Founder of VectoSolve
Self-taught developer, founder and sole developer of VectoSolve since 2024. He builds the conversion engine and the cutting, embroidery and 3D printing exports.
How this article was made: drafted with AI assistance, then edited and fact-checked before publication. About the author
Try it on your own file
Free preview, no signup. Drop an image and see the vector before deciding anything.
Key Takeaways
- Vectorizing blueprints preserves dimensional accuracy for renovation permits, compliance audits, and digital archival
- Scan large-format drawings at 600 DPI minimum — fine line work and dimension text vanish at lower resolutions
- Always verify scale calibration against a known measurement before trusting vectorized output
- Organize layers by building system (structural, MEP, annotations) so CAD teams can isolate what they need
- Heritage preservation demands the highest fidelity — once the original deteriorates, the vector is all that remains
Why Architectural Blueprints Demand Vectorization
Anyone who converts hand-drafted blueprints into CAD-ready files knows the pattern: a rolled-up D-size sheet arrives — yellowed, coffee-stained, annotated in three engineers' handwriting — and someone needs it in AutoCAD by Friday.
Paper blueprints degrade. They fade, tear at fold lines, and become illegible after too many photocopies. They cannot participate in BIM workflows, energy modeling, or permit systems requiring machine-readable geometry. Vectorization bridges that gap.
Three Scenarios That Force Conversion
Renovation and adaptive reuse. Before removing a load-bearing wall, you need the original structural layout in a format your engineer can overlay with new calculations. A raster scan does not snap to grid or carry layer data. A vectorized SVG imported into AutoCAD does both.
Code compliance and permit submissions. Most jurisdictions now require digital plan submissions. Scanning a 1962 blueprint and submitting the JPEG gets your permit rejected. You need clean vector geometry with readable dimensions and proper layer separation.
Digital archival. Universities, hospitals, and government buildings hold decades of construction history on paper. One basement flood destroys it all. A vectorized digital archive ensures that knowledge survives.
Scanning Large-Format Drawings
Vectorization quality is bounded by scan quality. Feed a blurry 150 DPI scan into any converter and the output will disappoint.
Pro Tip: For fine line work, hatching, and small dimension text, scan at 600 DPI in grayscale. The jump from 300 to 600 DPI doubles your ability to resolve lines 0.18 mm or thinner — the weight used for hidden lines and center marks in most drafting standards.
Recommended Scan Configuration
─────────────────────────────────────
Sheet size: 24" x 36" (D-size)
Resolution: 600 DPI
Color mode: Grayscale (8-bit)
Output format: Uncompressed TIFF or PNG
Result: 14,400 x 21,600 pixels
File size: ~45-60 MBFlatten creases with a cool iron on low heat — never steam, it bleeds ink. Remove tape residue with a soft eraser; adhesive shadows create false geometry. Note the stated drawing scale (1/4" = 1'-0" is typical) for post-vectorization calibration.
Vectorization Accuracy by Project Type
Not every blueprint needs the same precision. A marketing floor plan has different tolerances than a heritage measured drawing for a state preservation office.
| Project Type | Tolerance | Line Fidelity | Layers | Output |
|---|---|---|---|---|
| Residential renovation | +/- 1/4" | Moderate | 4-6 | DXF |
| Commercial fit-out | +/- 1/8" | High — MEP matters | 8-12 | DWG |
| Heritage preservation | +/- 1/16" | Maximum | 12-20+ | SVG + DXF |
| Real estate marketing | +/- 1/2" | Low — outlines only | 2-3 | SVG |
| Municipal code review | +/- 1/8" | High — egress, fire | 6-10 | PDF vector |
Heritage projects often need a dual-output strategy: one SVG faithfully replicating the original drawing's character, and one clean DXF for engineering analysis. VectoSolve supports both from a single upload.
A Full Year of Conversions for $49
Starter Annual: 25 conversions every month, $49 for the whole year. That is about $4.08 a month · Cancel anytime
Get the Annual DealThe Vectorization Workflow
Step 1 — Prepare and Upload
After scanning, adjust levels to maximize contrast, crop to the drawing border, and deskew. Upload to VectoSolve and select the high-detail architectural preset.
Step 2 — AI-Powered Conversion
The AI traces line geometry, distinguishes solid from dashed lines, and separates text from graphic elements. It must respect line weight hierarchy — a 0.50 mm wall line cannot merge with a 0.18 mm dimension line.
Step 3 — Review in the SVG Editor
Open the result in VectoSolve's SVG Editor to inspect output before CAD export. Check wall corner intersections, verify door swing arcs, and confirm dimension leaders point to correct geometry.
Step 4 — Export to CAD
Download as SVG for web or archival, or export to DXF for CAD import.
Warning: Scale accuracy is non-negotiable. After importing into CAD, always measure a known dimension — a door width (typically 36"), a parking stall (9'-0" x 18'-0"), or a stair tread (11" min by code). If it does not match the stated scale, recalibrate before any downstream work. One missed scale error cascades into incorrect material orders and failed inspections.
CAD Software Compatibility
AutoCAD (DXF / DWG)
When importing DXF output, set INSUNITS to match your drawing scale (1 = inches, 4 = millimeters). Polylines import as lightweight polylines; arcs maintain parametric definitions.
Revit
Revit does not natively import SVG. Export DXF from VectoSolve, import into a Revit drafting view, then use it as an underlay to model walls and openings in 3D — the standard approach for as-built modeling from legacy documents.
SketchUp
SketchUp imports DXF via File > Import. The floor plan lands on the ground plane, ready for push-pull extrusion. Clean layer separation means you can isolate wall geometry for extrusion.
CAD Import Cheat Sheet
───────────────────────────────────
AutoCAD: File > Import > DXF
Revit: Insert > Import CAD > DXF
SketchUp: File > Import > DXF
ArchiCAD: File > Merge > DXF
Vectorworks: File > Import > DXF/DWGLayer Organization for Building Systems
A vectorized blueprint without layer discipline is a flat drawing with extra steps. Proper organization makes the output genuinely useful downstream.
AIA Layer Naming Convention
──────────────────────────────────
A-WALL Structural walls
A-DOOR Doors and frames
A-GLAZ Windows and glazing
M-DUCT HVAC ductwork
P-SANR Plumbing / sanitary
E-LITE Electrical lighting
E-POWR Electrical power
A-ANNO-DIMS Dimensions
A-ANNO-NOTE AnnotationsWhen all systems are drawn on one legacy sheet, the AI distinguishes system types by line style — dashed for hidden structure, dot-dash for center lines, and symbol patterns for electrical and plumbing fixtures.
Free SVG Tools for Crafters
Design Checker · Color Separator · Mat Preview · Offset Generator · Text to SVG
Check Your SVG FreeHeritage Preservation Digitization
Digitizing drawings of a 19th-century courthouse or a mid-century landmark is an act of preservation. The draftsman's hand, the lettering style, the ruling-pen line weights — all carry historical value.
For heritage projects, a three-tier approach works well:
- Archival raster — High-resolution TIFF, uncompressed, color-calibrated
- Faithful vector replica — SVG preserving original visual character, including hand-lettered text as outlined paths
- Clean working vector — DXF with standardized layers and snapped geometry for engineering
VectoSolve handles tiers two and three from the same source scan.
Many state historic preservation offices now require digital documentation as part of the Historic American Buildings Survey (HABS) standard. Vectorized drawings alongside photographs create a preservation record that outlasts any physical document.
From Paper Archive to Digital Asset
Every blueprint in a flat file cabinet represents trapped knowledge — structural decisions and engineering intent that cannot be searched or shared. Vectorization unlocks it.
Scan with care, convert with precision using VectoSolve, organize layers by system, verify scale, and export to your CAD platform. The result is a living document that participates in modern workflows while preserving the intelligence encoded in hand-drafted originals.
Start Vectorizing Blueprints with VectoSolve
| Blueprint Type | Recommended Scan DPI | Vectorization Complexity | Typical Output Size |
|---|---|---|---|
| Floor plan (residential) | 600 DPI | Medium — walls, doors, dimensions | 200-500 KB SVG |
| Structural detail | 600-800 DPI | High — fine annotations, hatching | 500 KB - 2 MB SVG |
| Site plan | 400-600 DPI | Low-medium — large shapes, grades | 150-400 KB SVG |
| Mechanical/HVAC | 600 DPI | High — symbols, routing lines | 400 KB - 1.5 MB SVG |
| Electrical schematic | 600 DPI | High — small symbols, fine lines | 300 KB - 1 MB SVG |
